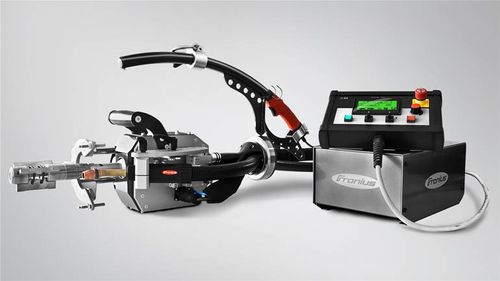

FTW 24-120 PRO TUBESHEET WELDER
MECHANISED ORBITAL WELDING
WELDING PROCESS: MIG-MAG
The FTW PRO is ideal for applications where factors such as time saving, optimal quality
and exact repeatability are paramount.

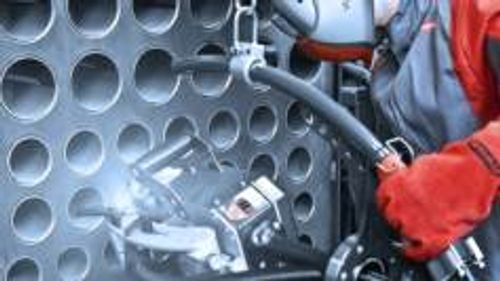

For pipe-to-pipe-plate joints in heat exchangers or heat sinks, these criteria are essential.
The pneumatic clamping system or the suspension device greatly simplify the work process
for the user and reduce the time required. The three-point support ensures exact positioning
of the welding torch, even with varying tube protrusions.
PRODUCT DETAILS
FTW 24-120 PRO TUBESHEET WELDERFTW 24-120 PRO TUBESHEET WELDERFEATURES
• Compact, ergonomic design
• Increases productivity while maintaining optimum quality and reproducibility
• Time-saving, simple positioning
• User-friendly operation
• Pneumatic clamping system
• Variety of mandrels and clamping jaws for different pipe inside diameters
• Precise adjustment units for user-dependent torch adjustment
• Special welding torch with Multilock quick-connect system and water cooling
• Hanging devices (optional) for different applications
• Practical handle to quickly start welding programs
• Three-point support (optional)
COMPONENTSMULTILOCK WELDING TORCH
Special water-cooled welding torch with Multilock quick-connect system for speedy changing or calibration of the torch body (elbow available in 20°/30°).
CLAMPING SYSTEM
Various mandrels/clamping jaws/bearing rings in a practical storage case. Pneumatics are used for clamping.
THREE-POINT SUPPORT (OPTIONAL)
Precisely distance the welding torch using the pneumatic three-point support – even with varying tube protrusions.
ADJUSTMENT UNITS WITH FIXING
Two rotary buttons and two locking levers enable the welding torch to be precisely adjusted and fixed in place.
HANGING DEVICE
Can be used for vertical or horizontal welding positions. When used in conjunction with a spring balancer, allows “weightless” positioning.
HANDLE
Ergonomic handle for starting welding programs. This can also be used when removed from the hanging device.
FCU/FTW CONTROL UNIT WITH FRC-40 / FTW REMOTE CONTROLFEATURES
• Sturdy housing
• Graphical user interface
• Touch display
• Multifunctional dial
• Replaceable protective film for display
• Parameters can be programmed and stored
• Variety of languages
• Job switch (optional)
TOUCH DISPLAY
User-friendly touchscreen operation.
MULTIFUNCTIONAL DIAL
l
For selecting and correcting parameters, even during automatic program sequences.
ACCESSORIES
MANDRELS
Three mandrels cover a tube inside diameter range of 30 to 120 mm (other diameters available on request).
CLAMPING JAWS
Three mandrels cover a tube inside diameter range of 30 to 120 mm (other diameters available on request).
BEARING RINGS
Bearing rings for different pipe diameters.
