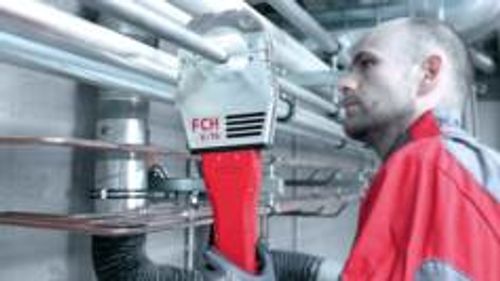

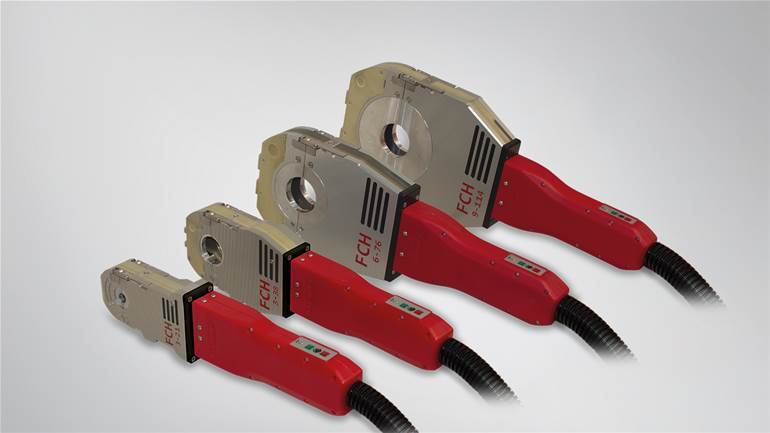

FCH 3-21 / 3-38 / 6-76 / 9-114 Welding Heads
Mechanised Orbital Welding
WELDING PROCESS: TIG
Closed welding heads for the mechanised TIG orbital welding of thin-walled pipe joints
(external diameter 3 - 114 mm, wall thickness up to 3.5 mm) made of stainless steel,
titanium, nickel-based alloys, aluminium and other materials without the use of filler wire.
CHARACTERISTICS
SPOT-ON VERSATILITY
• FCH welding head with 8 m hosepack
• High duty cycle due to effective water cooling
• Integrated servo motor
• Automatic movement to the opening position
• Freely definable start position
• Automatic switch-off of the motor current in the event of overloading
• Compact design – optimum accessibility in confined areas
• Best possible gas shield and low level of temper colouration
• Clamping system for secure fixation and centring on the component
• Quick changeover system for clamping shells
• Highly user-friendly thanks to control buttons integrated in the handle
• Transport case with trolley function

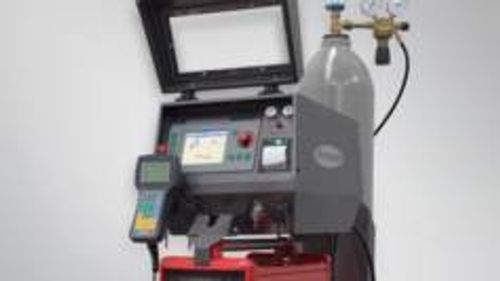

FPA 3020 SYSTEM CONTROLLER
STANDARD EQUIPMENT
• Lightweight, compact design – ideal for portable use
• Integrated microprocessor control
• Integrated 200A, single-phase inverter power source
• Generator-compatible
• Integrated water cooling with water detector
• Integrated gas flow detector
• Intuitive touchscreen control panel with colour graphical process diagram
• Choice of languages (De/Gb/Fr/It/Es/Pb/Ru/Cz/Tr/Pl)
• Storing of programs onto USB flash drive
• Data backup onto USB flash drive
• Control of welding current, axis of rotation, forming gas and external wirefeeder
• Measuring and recording of heat input
• SynergicMode (material, pipe external diameter, wall thickness, gas, etc.)
• Auto-diagnosis system (error code display)
• Welding data documentation on USB flash drive
• USB port for data transfer/recording
• Integral printer for welding data documentation
• FRC-FPA 3020 remote control with 10 m cable
• 1 x 8 GB USB flash drivePROGRAMMING WELDING PARAMETERS
• 200 programs can be stored and loaded
• Three tacking programs with up to 20 tacked spots
• Ten sectors/program with freely definable parameters
FRC-FPA 3020 REMOTE CONTROL FUNCTIONS
• Program selection
• Start/stop with slope, immediate end of welding
• Emergency Stop button
• Manual positioning of the movement units
• Manual wire feed and retract
• “On-the-fly” parameter changes during the welding cycle
• Shielding gas test button and forming gas on/off
VALUES DISPLAYED DURING THE WELDING CYCLE
• Welding current (A)
• Welding current (A)
• Arc voltage (V)
• Torch position (degrees)
• Welding speed (cm/min)
FPA 3030 SYSTEM CONTROLLER
STANDARD EQUIPMENT
• Mounted on trolley
• Mounted on trolley
• Integrated microprocessor control
• Generator-compatible
• Integrated digital gas sensor
• Easy to program following intuitive operator guidance
• Remote support via internet connection
• Colour touchscreen with colour graphical process display
• Choice of languages (De/Gb/Fr/It/Es/Pb/Ru/Cz/Tr/Pl)
• Control of welding parameters for digital Fronius TIG power sources
• Control of axis of rotation using encoder
• Control of wirefeeder and forming gas
• Welding data recording onto USB flash drive
• SynergicMode (material, pipe external diameter, wall thickness, gas, etc.)
• Auto-diagnosis system (error code display)
• Ethernet and RS232 interface for servicing
• Storing and loading of programs onto/from USB flash drive
• Data backup onto USB flash drive
• Built-in printer prints 40 characters per line
• FRC-FPA 3030 remote control with 10 m cable
• 1 x 8 GB USB flash drive
PROGRAMMING WELDING PARAMETERS
• 200 programs can be stored and loaded
• Three tacking programs with up to 20 tacked spots
• Ten sectors, program with freely definable parameters
FRC-FPA 3030 REMOTE CONTROL FUNCTIONS
• Program selection
• Start/stop with slope, immediate end of welding
• Emergency Stop button
• Manual positioning of the movement units
• Manual wire feed and retract
• “On-the-fly” parameter changes during the welding cycle
• Shielding gas test button and forming gas on/off
VALUES DISPLAYED DURING THE WELDING CYCLE
• Welding current (A)
• Arc voltage (V)
• Torch position (degrees)
• Welding speed (cm/min)
• Wire speed (cm/min)
• Heat input (kJ)

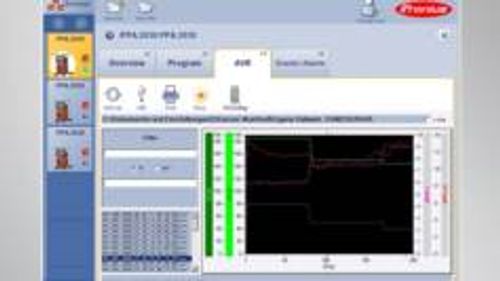

SOFTWARE FPA-XPLORER FOR PFA 3030
Welding Data Documentation, Visualisation, Archiving And Parameter Creation On A PC
• View the properties of all managed devices
• Manage, edit and archive welding programs
• Overview of managed devices with status indicator
• AVR (Actual Value Record): visualise, evaluate and archive recorded actual values – via USB flash drive or in real time via the network connection (online version)
• Load log book data from USB flash drive or by downloading it directly from the control unit via the network connection (online version)
• Live display of alarm signals (online version)
ACCESSORIES FOR WELD HEADS & SYSTEM CONTROLS
FOR FCH WELD HEADSFOR FCH WELD HEADS
• Clamping shells for a wide variety of pipe diameters
• Customer-specific clamping shells
• Offset electrode holder (FCH 6-76/9-114 only)
• Tiltable electrode holder (FCH 6-76/9-114 only)
• FCH/FOH 10 m extension hosepack
• FPA 3020/3030 orbital system controller
FOR FPA 3020 SYSTEM CONTROL
• Grounding cable, gas hose
• PickUp trolley with console and toolbox
• Pressure regulator
• Open welding heads with/without welding wire
• Hosepack extension
• Manual welding torch
• Printer paper
FOR FPA 3030 SYSTEM CONTROLLER
• FPA Xplorer software for offline/online use (data documentation/archiving)
• Ethernet cable
• TIG power source, cooling unit, KD supply
• PickUp trolley
• Hosepack extension
• Printer paper
