ARCROVER 22
WELDING CARRIAGE FOR MECHANISED LONGITUDINAL SEAM WELDING
WELDING PROCESS: MIG-MAG

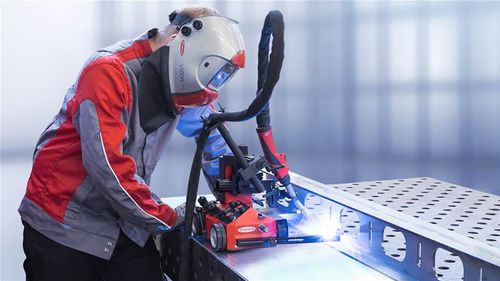

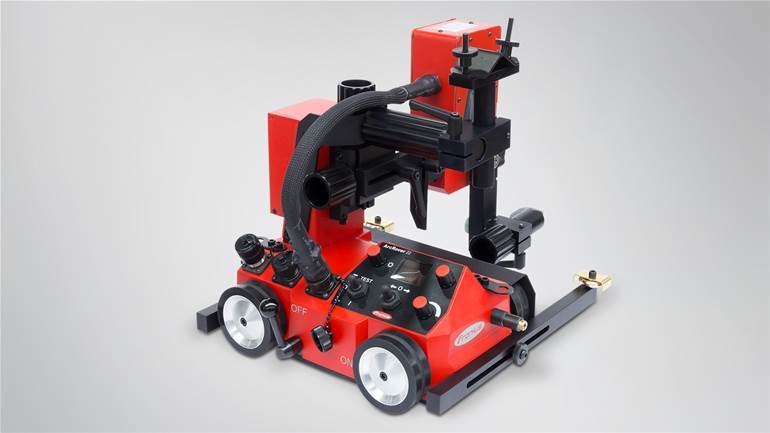

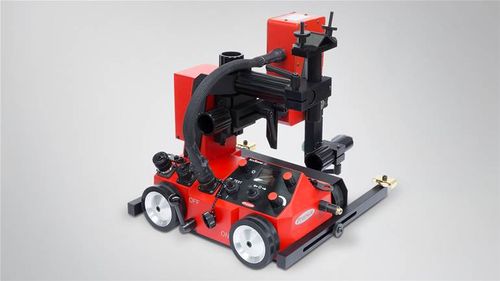

The battery-powered ArcRover 22 is a universal welding tractor for mechanised longitudinal seam welding.
Its integrated permanent magnet ensures optimum adhesion and optimum traction for wheels.

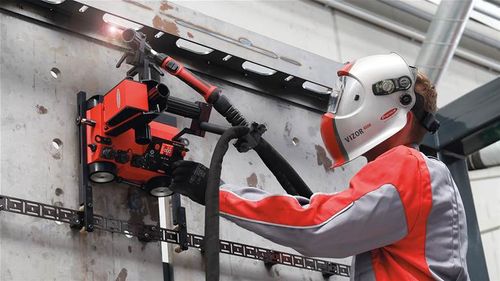

Can also be used vertically.
THE BENEFITS OF WELDING WITH ARCROVER 15:
• Reduced height for even more welding applications
• Reduced height for even more welding applications
• Optimal performance under harsh environmental conditions
• Safe thanks to compliance with rules for welding interior container surfaces
• Welding made easier with high-performance li-ion battery
• Maximum traction on horizontal, vertical, concave and convex components
• Constant welding speed in all positions up to 250 cm/min
• Precision torch guidance on the component
• Definable welding segments
• Consistently high weld seam quality and eproducible welding parameters in conjunction with Fronius power source technology
• Compact, robust and lightweight aluminium housing
• Global service network
EQUIPMENT:
• 4-wheel drive, integrated permanent magnet
• Integrated controller with backlit display
• Path measuring system
• Adjustable lateral guides for precise seam tracking
• Robust universal welding torch holder for manual and machine welding torches
• Power source connection cable (10 m)
• Replaceable lithium-ion battery (25.4 V/3.35 Ah)
FUNCTIONSFUNCTIONS
• Main switch: on/off
• Left/stop/right
• Speed control
• Digital speed display
• Welding on/off (2-step mode)
• Start/stop power source (2-step mode)
• Menu-based control system for travel path; segment welding, end-crater filling and OSC
• Memory for 10 programs
RADIAL OSCILLATION (OPTIONAL)
• OSC on/off/automatic
• Dwell time left/right
• Oscillation speed
• Oscillation path
OPTIONS AND ACCESSORIES
• Lateral guides
• Radial oscillation FOU 30/ML6
• Motorized torch feeder FMS 50/100
• Battery charging system (230 V)
• Replaceable lithium-ion battery (25.4 V/3.35 Ah)
• Stainless steel wheels
• Brushes
TILTABLE LATERAL GUIDE
• Tiltable lateral guide
LATERAL GUIDE FOR EDGE
• Guide arm for flexible rail
STANDARD LATERAL GUIDE WITH MAGNET
• Magnetic base for guide rail
LATERAL GUIDE WITH GUIDE RAIL
• Flexible guide rail
EXTRA TORCH HOLDER
• It is only possible to use two welding torches in a horizontal position.
