The IRB 5500 FlexPainter takes painting closer to perfection by integrating the paint application equipment. Combined with its large work area and high acceleration and painting speed, the result is the most efficient and flexible paint robot solution for basically any application.
Paint savings
Our compact and light-weight paint application components enable us to put vital paint regulation equipment, like the pumps, as close as 15 cm from the wrist. This reduces paint and solvent waste during color change significantly.
We have integrated the process equipment in the IRB 5500 FlexPainter in addition to the fully integrated process control (hardware and software). The IRC5P is controlling both the paint process and the robot motion so you can enjoy substantial savings.
Powered by IPS
The “push-out” function integrated in the IPS system is one specific feature that enables a reduction of paint even further. The basic architecture of IPS is built on combining process control and motion control as one, this simplified the system set up and enables for

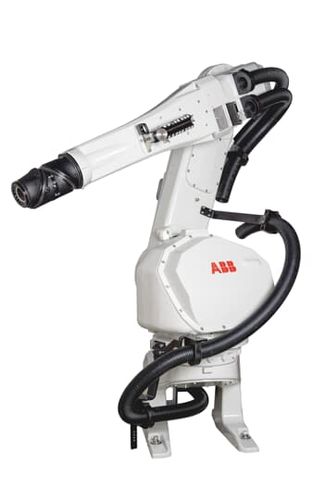

IRB 5510 FlexPainter is a highly flexible and accurate mediumsized paint robot for automotive small parts and general industrial painting. This robot provides a shorter cycle time, process optimization, and digital platform to ensure premium paint quality and uptime.
IRB 5510 offers the same advanced functions as IRB 5500 in a small form factor with a small foot print compared with other similar robots on the market. Highly versatile, IRB 5510 is aimed at small work piece painting, flaming treatment, and opener applications.
The increased acceleration provided by including IRB 5500 drivers and schematics allows us to equip IRB 5510 with advanced functions such as “StayOn”, as done very successfully with IRB 5500. This robot also provides a shorter cycle time, process optimization, and path control to ensure premium paint quality.
This functionality is crucial for industries where cycle time is essential to productivity, such as automotive small parts and General Industry (GI) customers. To address the needs of GI customers, IRB 5510 is designed for ease of use, streamlined manipulator maintenance, simplified software support, reduced operational costs, and increased spare parts availability.
IRB 5510 is equipped with ABB’s hollow wrist technology. This high-precision hollow wrist features a straight design that eliminates wear and tear on the paint- and air-supply hoses, increasing overall reliability.
Additionally, the wrist supports 140-degree rotation in any direction, making IRB 5510 one of the most versatile and easy-to-program paint robots in its class.
IRB 5510 also features ABB’s unique Integrated Process System (IPS) with closed-loop regulation capabilities and high-speed paint and airflow control. The IPS can increase process response times and reduce paint and solvent waste. Synchronizing the flow of paint with the motion of the robot arm improves transfer efficiency and minimizes overspray, thereby reducing paint wastage and increasing cost efficiency.
Why choose IRB 5510?
? This robot provides a shorter cycle time, process optimization, and digital platform to ensure premium paint quality.
? High-precision technologies including ABB’s hollow wrist, IPS, and bell technologies
? Inherent IRB 5500 family advantage
? Increased productivity with rapid installation and high system uptime
? Compact design
? State-of-art robot platform with digital infrastructure
? More scenarios for mounting
